The room becomes a resonance field.
The body attunes.
Sound that is not only heard, but felt through the whole body. Built with Apollon Frequenzen for physiotherapy practices, somatic studios and guided group work, and just as much for anyone who wants the field at their own bench or bed at home.
Frequency work only unfolds its full power when the room and the treatment bench become one inseparable unit. Instead of a single box firing at the room from one corner, Sensory Fusion opens a floating cloud of sound around the body. Every frequency programme, every guided voice and every fundamental tone spreads out evenly, with no loud hotspots, no distortion and no droning.
Three layers do the work: the bench that carries the deep frequencies into the body, the room that carries the audible foundation, and the wide radiating satellites that put voice and overtones everywhere at once. A real time engine keeps all three on the same clock. The person on the bench notices none of that. They notice a room that carries them, and a body that settles into it.
One system. Two dimensions of impact.
Throughout the entire room
The room fills with a warm, grounding low end and fine, crystalline harmonics. Everyone sits or lies inside the field rather than in front of a speaker, and everyone receives the same signal at the same moment regardless of where they are. That is the condition a group needs to settle together.
Directly on the treatment bench
Through the invisibly integrated BM1 module, the bench surface itself becomes a resonating body. Low frequencies reach the body as gentle, high precision micro vibration, carried by the surface rather than by the air. The same module fits under a treatment bench in a practice or under a bed at home.
What people actually notice
The whole body resonates
A solid 50 W die cast aluminium module sits under the bench and turns the surface itself into a resonating body. Because it works from 15 Hz upward, below the range the ear reads as a tone, the frequency reaches the body through the structure instead of taking the detour through the air. No droning, no rattling housing, just a deep and even resonance that travels.
Bass that carries instead of pushes
The audible foundation comes from a dedicated subwoofer in the room, not from the bench. That keeps the treatment surface free for the fine tactile work, and keeps the bass warm and round even in long sessions.
The whole room sounds, not just one speaker
The satellites disperse across a full 180 degrees. There is no narrow sweet spot and no best seat. Whether someone sits at the front on a mat or lies at the back by the wall, the sound is equally open and full. For group work this is the difference between being played at and being inside a field.
Feeling and hearing in the same moment
Sound travels through solids around ten times faster than through air. Without correction the touch would arrive ahead of the sound and the two would separate again in perception. Our engine aligns the travel times in real time, under a millisecond, so what arrives is a single event rather than two signals.
Mounted in two minutes
Fully pre assembled with a four metre special cable and an industrial 3M Dual Lock mushroom head fastener. The module goes under any standard bench without tools, holds firm against vibration and sits free of play. No screws, no drilling, no visible technology and nothing that has to be undone before the next appointment.
Work with frequencies and from here on you stop working against the room.
You work with it.
Developed together with Apollon Frequenzen

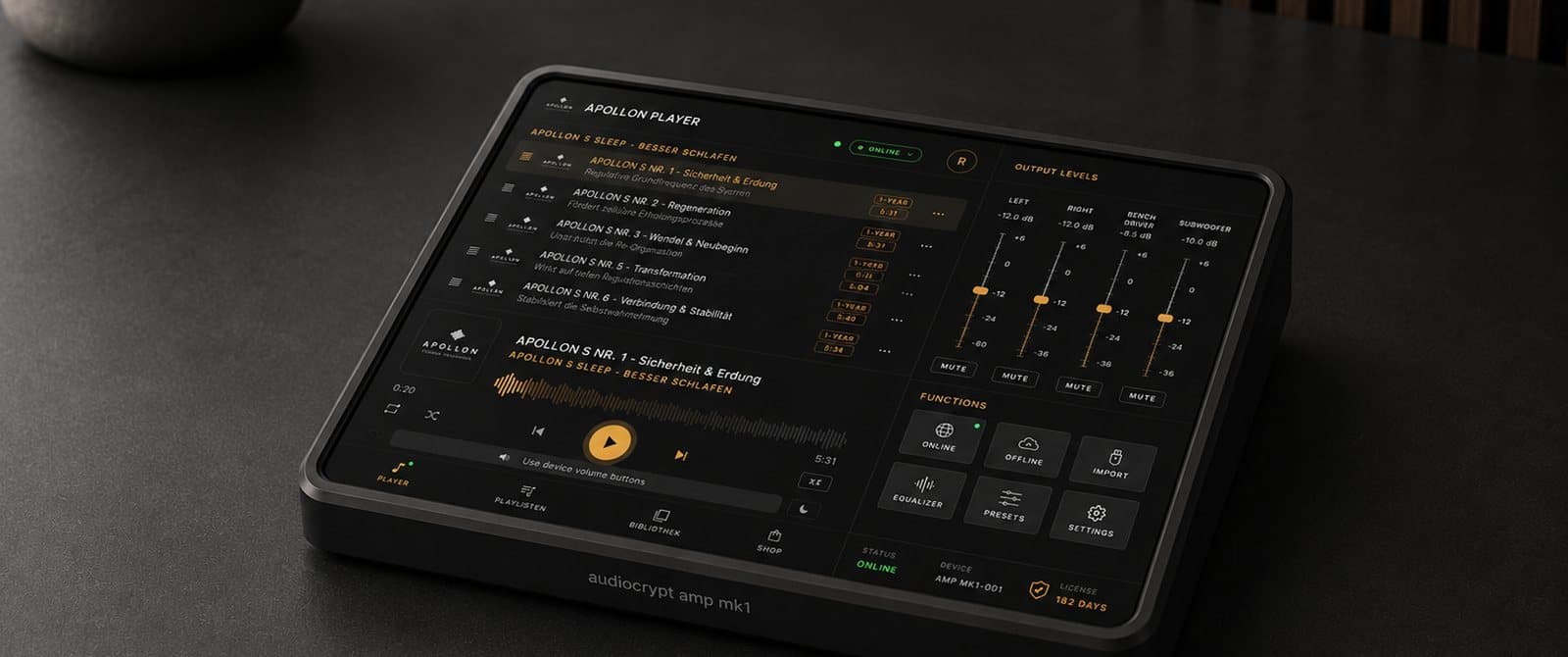

AudioCrypt Sensory Fusion was developed together with Apollon Frequenzen. Signal path, operation and voicing are laid out for playback of the Apollon frequency tracks, from the playlist in the player through to the way the channels are distributed across bench, subwoofer and room.
AudioCrypt Sensory Fusion is an audio and vibration system, not a medical device. It reproduces sound and vibration and does not replace medical or therapeutic treatment. Descriptions of the experience refer to acoustic and tactile perception. Certification marks named in this document refer to the electronic modules used.
Precision vibroacoustics.
Pure architecture.
Encrypted frequency streaming, tactile synchronisation under a millisecond, and an optional fully wired LAN mode with no active radio. Built for therapeutic spaces.
Hardware platforms

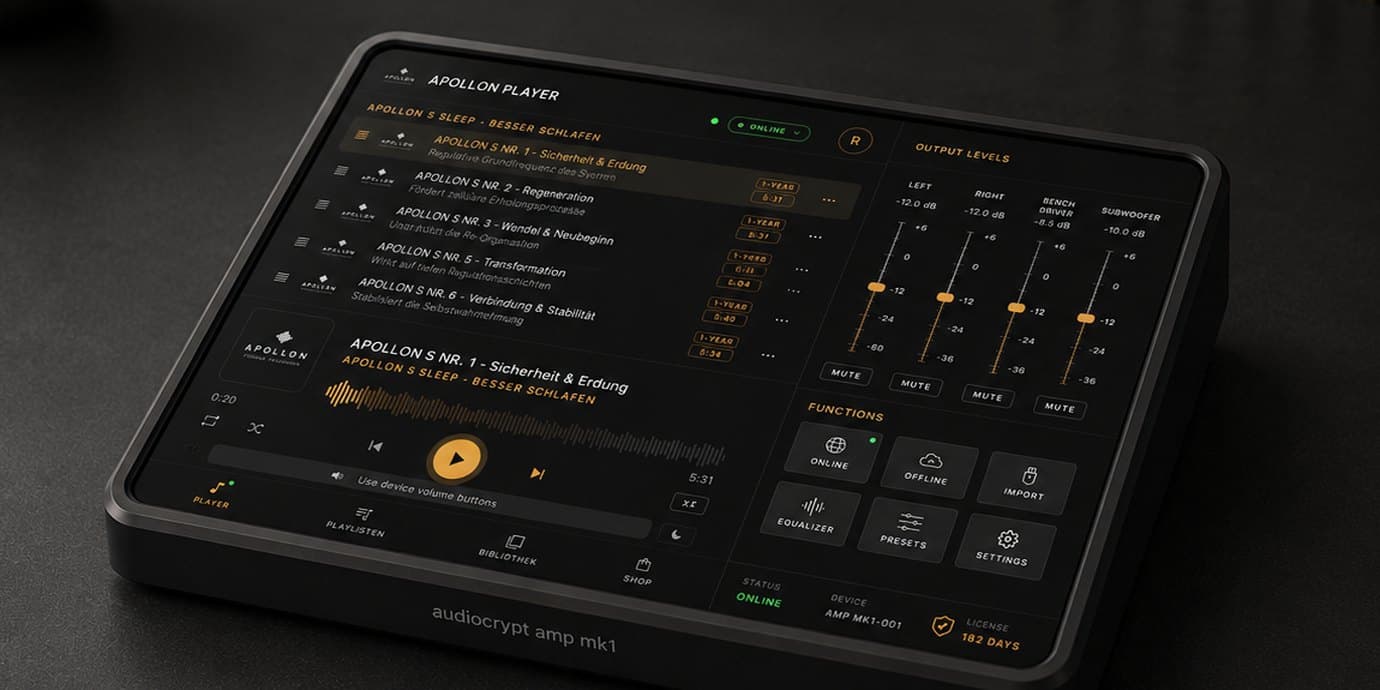

AudioCrypt Amp MK1
Master console built around a digitally programmable eight channel preamplifier. Four of those channels leave the unit as freely assignable 50 W outputs in the base configuration, so bench transducers, subwoofer and room satellites are levelled, delayed and limited independently of each other.
| Preamplifier | 8 channels, digitally programmable and freely assignable |
| Converters | 24 bit / 192 kHz high end converters |
| Converter signal to noise | 112 dB typical, 2 Vrms maximum line output |
| Converter distortion | THD+N at -93 dB typical, around 0.002 percent |
| Frequency response | 10 Hz to 20 kHz |
| Signal path | 2 Vrms converter output straight into the amplifier input, no intermediate gain stage |
| Output stages | 4 × 50 W continuous into 4 ohm, up to 70 W peak per channel, efficiency above 90 percent |
| Enclosure and power | 10.1 inch industrial touch terminal, external 24V / 240W supply |
| Output protection | Under voltage, over temperature, over current, short circuit and reverse polarity |

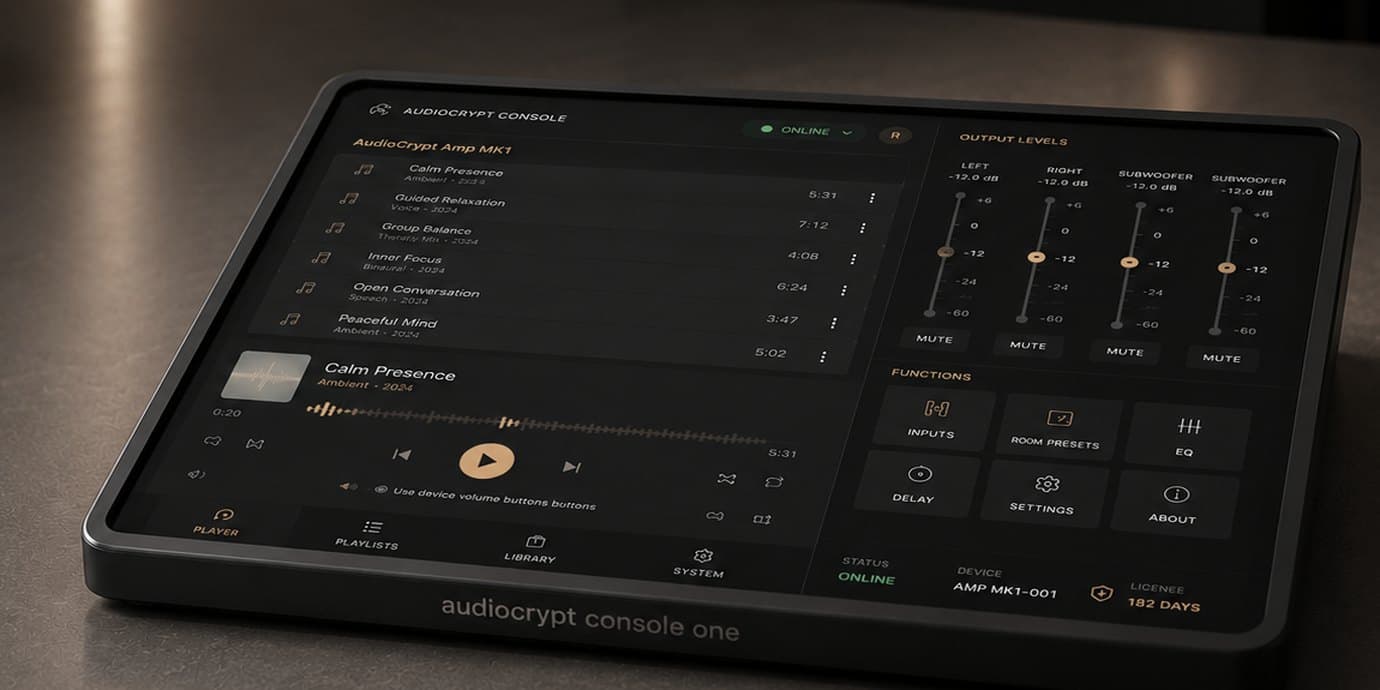

AudioCrypt Console One
Dedicated control surface for distributed multi zone deployments, pairing with modular amplifiers across clinic spaces without carrying amplification itself.
| Enclosure | 10.1 inch hardened touch IPS desktop unit |
| Processor | Rockchip RK3568 quad core with 4GB RAM |
| Streaming | Encrypted bitstream over bit perfect LAN |
| Amplifier pairing | Modular Arylic A50+ or WiiM Amp |
| Special feature | Hardware level RF kill, radios switchable off |

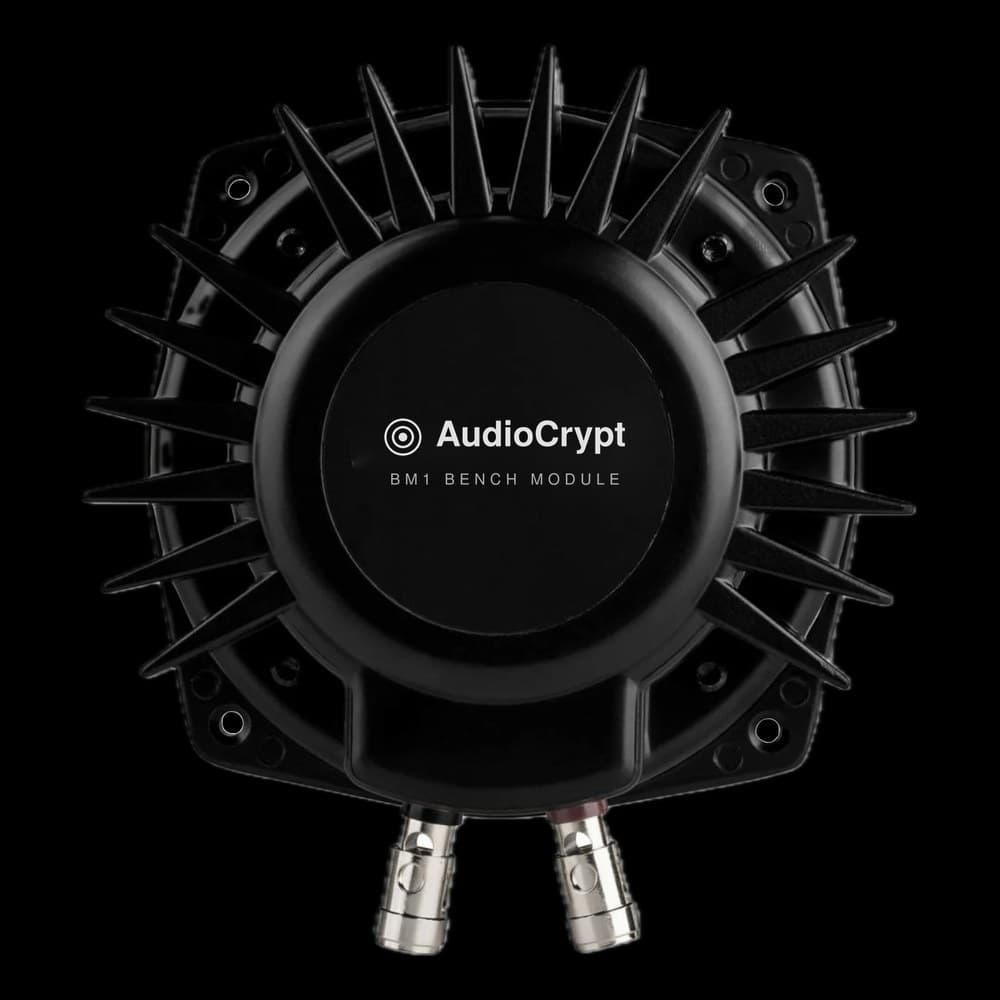

The treatment bench module
AudioCrypt BM1
The BM1 sits invisibly under the treatment bench and turns it into a resonating body. It puts out no audible sound of its own. It carries the lowest frequencies straight into the structure, which is why the deep work stays silent in the room and stays present in the body.
| Driver technology | Direct drive resonance transducer with internal inertial mass |
| Power handling | 50 W RMS, 100 W peak |
| Impedance | 4 ohm, one class D output channel per module |
| Working range | 10 to 80 Hz, core transmission 15 to 50 Hz |
| Resonance frequency | Around 29 Hz, in the therapeutic sub bass |
| Chassis | Low resonance die cast aluminium with 4 point coupling bridge |
| Cabling | 4.0 m pre assembled, highly flexible, strain relief keyed against reverse polarity |
| Mounting | Industrial 3M Dual Lock mushroom head fastener, form fit and free of play |
Single bench packs
These packs are built for rooms that already have audio in them. The speakers you own stay exactly where they are and keep carrying the audible sound. What comes in is the BM1 under the bench for the frequencies that belong in the body, plus the console that puts both layers on the same clock. If the room has no bass foundation yet, the AudioCrypt room subwoofer is available as an option.
MK1 Bench Pack
All in one console wired straight to the bench over ordinary speaker cable with banana plugs. The BM1 takes one output, so three remain free for a subwoofer and a pair of room satellites.
- AudioCrypt Amp MK1 console, 8 channel preamp with 4 × 50 W outputs
- AudioCrypt BM1 bench module, 50 W haptic driver
- 4 m pre assembled speaker cable with banana plugs, included with the BM1
- External 24V / 240W industrial power supply
- Optional AudioCrypt room subwoofer if the room has no bass foundation yet
Console One LAN Bench
Fully wired isolation, radios stay disabled, for electromagnetically sensitive rooms. The BM1 uses one amplifier channel, the second stays free for the optional subwoofer.
- AudioCrypt Console One
- Arylic A50+ compact amplifier
- Mini 5 port gigabit network hub
- AudioCrypt BM1 bench module, 50 W haptic driver
- Slim Cat.6 patch cabling
- Optional AudioCrypt room subwoofer if the room has no bass foundation yet
Console One Wi-Fi Bench
Clean wireless streaming over the local network, free desktop positioning and no cable runs. The room keeps playing over its own system, the second amplifier channel stays free for a subwoofer.
- AudioCrypt Console One
- Arylic A50+ compact amplifier
- AudioCrypt BM1 bench module, 50 W haptic driver
- Discreet speaker cabling
- Optional AudioCrypt room subwoofer if the room has no bass foundation yet
Bench and room extension packs
MK1 Room Suite
One console covering the complete system across its four independent 50 W outputs. One channel to the bench, one to the subwoofer, two to the room satellites.
- AudioCrypt Amp MK1 console, 4 × 50 W freely assignable outputs
- AudioCrypt BM1 bench module, 50 W haptic driver
- AudioCrypt room subwoofer
- AudioCrypt satellite ambient speakers, pair
- Independent multi zone software limiting and faders
Console One LAN Suite
Two stereo amplifiers on a gigabit mini hub for fully wired, jitter free synchronicity. Four channels in total: bench, subwoofer and a pair of satellites.
- AudioCrypt Console One
- 2 × Arylic A50+ compact amplifiers
- Mini 5 port gigabit network hub
- AudioCrypt BM1 bench module, 50 W haptic driver
- AudioCrypt room subwoofer and satellite ambient speakers, pair
Console One Wi-Fi Suite
Complete wireless multi zone architecture with no cable runs across the therapy area. Four amplifier channels for bench, subwoofer and satellite pair.
- AudioCrypt Console One
- 2 × Arylic A50+ compact amplifiers
- AudioCrypt BM1 bench module, 50 W haptic driver
- AudioCrypt room subwoofer and satellite ambient speakers, pair
- Persistent Linkplay multiroom grouping
Group therapy setup
For group work, meditation and sound journeys the same system is built without the bench module. The room carries the session. There are two ways to get there, depending on whether the space already has audio in it.
MK1 with satellites and subwoofer
The console stands on its own in the room and drives the satellites and the subwoofer directly from its own output stages. No network, no third party system, nothing that has to log in first. Switch on, pick a programme, work. One output stays free in case a bench is added later.
Console One onto existing active systems
The Console One plays straight onto wireless amplifiers, or onto the active and streaming systems already installed in the room. For studios that already have audio on the walls, this is the fastest route to a working field without buying a single new speaker.
Additional zones over wireless
The MK1 can also feed further zones over Wi-Fi and pull them into the delay alignment. Whether a given wireless or Bluetooth system can be addressed and held in sync depends entirely on that system. Common platforms such as Bose can usually be integrated, while others connect but drift with variable latency. We check this case by case before installation, because a zone running a few tenths of a second late does not enrich the field, it destroys it.
Hardware level protection
Decryption happens only in volatile memory. High resolution frequency streams are never written to unencrypted storage or exposed on unamplified line level outputs.
Sub-millisecond clock sync
Real time delay alignment between the tactile bench driver and the room channels prevents phase cancellation and audible delay artefacts.
Full regulatory compliance
All core electronic modules carry factory CE (RED, EMC, LVD), FCC and RoHS documentation for compliant clinic installation.
